Quick Start

What is Quine Enterprise

Quine Enterprise combines the real-time event stream processing capabilities of systems like Flink and ksqlDB with a graph-structured data model as found in graph databases like Neo4j and TigerGraph. Quine Enterprise is a key participant in a streaming event data pipeline that consumes data, builds it into a graph structure, runs computation on that graph to answer questions, find patterns, run algoritms, or otherwise compute results and stream them out.

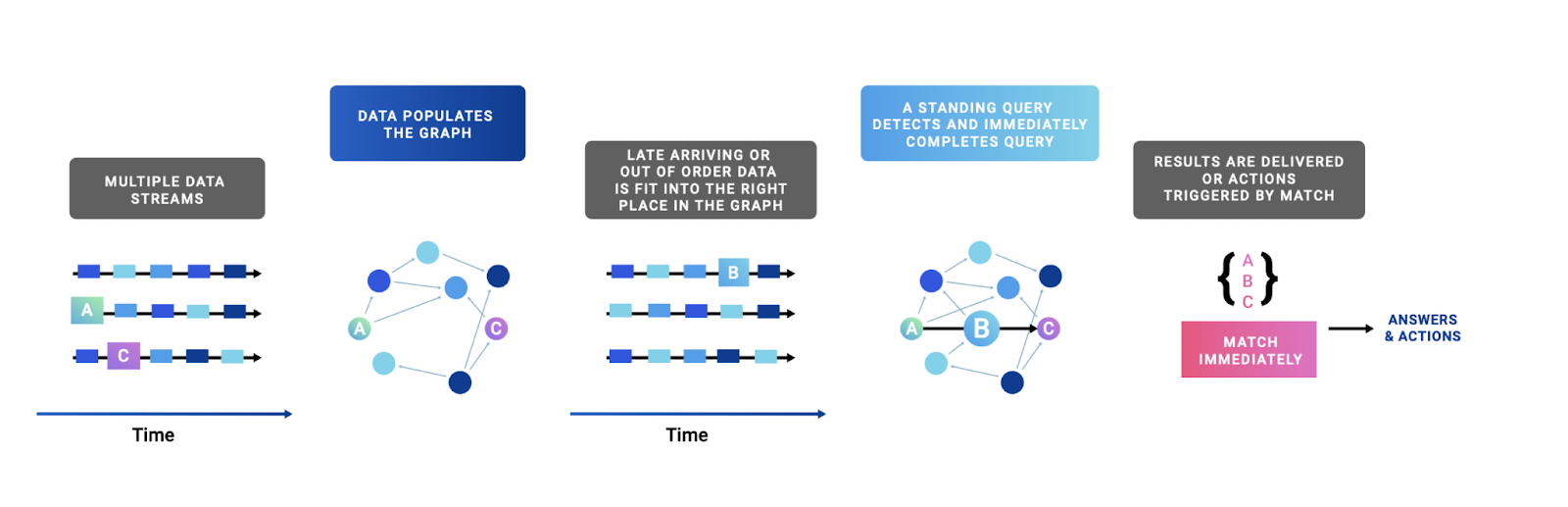

Quine Enterprise Streaming Graph Pipeline

All together, Quine Enterprise can:

  • Ingest high-volume streaming event data from stream processing systems like Kafka, Kinesis, files, APIs, or databases/data warehouses
  • Convert and merge it into durable, versioned, connected data (a graph)
  • Monitor that connected data for complex structures or values
  • Trigger arbitrary computation every time your pattern matches the data
  • Emit high-value events in real-time to stream processing systems like Kafka, Kinesis, APIs or databases/data warehouses

This collection of capabilities represents a robust system for stateful event-driven arbitrary computation in a platform scalable to any size of data or desired throughput.

Before you begin

Concepts that you should already be familiar with:

Install Quine Enterprise

Running the trial version of Quine Enterprise requires an API Key. To get an API Key, you can follow these instructions for detailed steps on where to fill out a form to receive a key, how to configure Quine Enterprise, and how to run an instance. The summary of it is this:

  1. Fill out Free Trial Form and Receive API Key
  2. Download Quine Enterprise Free Trial
  3. Configure and run Quine Enterprise

Starting the thatDot Quine Enterprise instance should output some trial license information and should show that the Quine Enterprise web server is ready to serve requests at localhost:8080

Starting Quine Enterprise

It may also help to read Quine Enterprise's Main Concepts before starting.

Connect to Quine Enterprise

There are two main structures that you need to configure in Quine Enterprise; the ingest stream forms the event stream into the graph, and standing queries which match and take action on nodes in the graph. Follow the links in the tutorial to the API documentation to learn more about the schema for each object.

Rapid API testing with provided .rest file

We’ve created a short .rest file that can be used with VSCode’s REST Client plugin or IntelliJ’s HTTP Client to rapidly try out the following REST API calls. Use it as a point-and-click alternative to cURL.

Connect an Event Stream

For example, let's ingest the live stream of new pages created on Wikipedia; mediawiki.page-create .

Create a "server sent events" ingest stream to connect Quine Enterprise to the page-create event stream using the ingest API endpoint.

Issue the following curl command in a terminal running on the machine were you started Quine Enterprise.

curl -X "POST" "http://127.0.0.1:8080/api/v1/ingest/wikipedia-page-create" \
     -H 'Content-Type: application/json' \
     -d $'{
  "format": {
    "query": "CREATE ($that)",
    "parameter": "that",
    "type": "CypherJson"
  },
  "type": "ServerSentEventsIngest",
  "url": "https://stream.wikimedia.org/v2/stream/page-create"
}'

Congratulations! You are ingesting raw events into Quine Enterprise and manifesting nodes in the graph.

Warning

Now that you have some data in Quine Enterprise, you might be tempted to do some common simple operations most devs do with a new database. But Quine isn't (exactly) a database! Sure, it stores data and let's you query it, but "simple for a database" and "simple for Quine" aren't always the same. For example: MATCH (n) RETURN count(n) That's a perfectly normal operation that almost everyone would do to begin testing out a new database because it's a simple sanity check expected to run quickly. But in contrast to a database, counting all nodes in Quine is actually quite an expensive operation! For more on why counting is hard and how Quine differs from traditional databases, see that page, and especially the section on counting.

View the Data

Let's look at a node to see what it contains by submitting a Cypher request via the query/cypher API endpoint.

curl -X "POST" "http://127.0.0.1:8080/api/v1/query/cypher" \
     -H 'Content-Type: text/plain' \
     -d "CALL recentNodes(1)"

This query calls the recentNodes Cypher procedure to retrieve the most recent one (1) node. You will get a response back that looks something like this:

{
  "columns": [
    "node"
  ],
  "results": [
    [
      {
        "id": "7a9a936f-ae1a-49c5-ba99-0ec6401bfd7d",
        "labels": [],
        "properties": {
          "database": "enwikisource",
          "rev_slots": {
            "main": {
              "rev_slot_content_model": "proofread-page",
              "rev_slot_origin_rev_id": 12558576,
              "rev_slot_sha1": "lqrhvc49cgzegvvfqnzg3c6bpxs55up",
              "rev_slot_size": 1699
            }
          },
          "rev_id": 12558576,
          "rev_timestamp": "2022-08-23T18:34:25Z",
          "rev_len": 1699,
          "rev_minor_edit": false,
          "parsedcomment": "<span dir=\"auto\"><span class=\"autocomment\">Proofread</span></span>",
          "page_title": "Page:The_Works_of_H_G_Wells_Volume_6.pdf/423",
          "rev_content_format": "text/x-wiki",
          "page_id": 4034745,
          "page_is_redirect": false,
          "meta": {
            "domain": "en.wikisource.org",
            "dt": "2022-08-23T18:34:25Z",
            "id": "3c8c9150-19aa-4f33-be5d-bf3ef8d8a994",
            "offset": 241649600,
            "partition": 0,
            "request_id": "0ba80d5c-3c97-4971-b0d2-360c5d20e0f6",
            "stream": "mediawiki.page-create",
            "topic": "eqiad.mediawiki.page-create",
            "uri": "https://en.wikisource.org/wiki/Page:The_Works_of_H_G_Wells_Volume_6.pdf/423"
          },
          "page_namespace": 104,
          "rev_sha1": "lqrhvc49cgzegvvfqnzg3c6bpxs55up",
          "comment": "/* Proofread */",
          "rev_content_model": "proofread-page",
          "$schema": "/mediawiki/revision/create/1.1.0",
          "performer": {
            "user_edit_count": 10176,
            "user_groups": [
              "autopatrolled",
              "*",
              "user",
              "autoconfirmed"
            ],
            "user_id": 141433,
            "user_is_bot": false,
            "user_registration_dt": "2009-07-12T12:33:52Z",
            "user_text": "MER-C"
          }
        }
      }
    ]
  ]
}

The API call is the functional equivalent to issuing the CALL recentNodes(1) query in the Exploration UI: image

Note

Your API response will contain a different set of parameters than above because you are ingesting a stream of live events from Wikipedia.

Connect Data in Streams

This ingest stream is performing the most basic of data ingest functionality; it manifests a disconnected node directly from each event emitted from the Wikipedia event stream.

Create a Standing Query

A Standing Query matches some graph structure incrementally while new event data is ingested. Creating a standing query is done with a single call to the standing/query API endpoint.

Right now, Quine is the only component in our data pipeline. Let's configure a standing query that watches for new nodes to enter the graph and print the node contents to the console.

Note

A standing query can emit the event data, re-form the event into new events, or trigger actions to inform elements downstream in your data pipeline (e.g., a Kafka topic).

curl -X "POST" "http://127.0.0.1:8080/api/v1/query/standing/wikipedia-new-page-node" \
     -H 'Content-Type: application/json' \
     -d $'{
  "pattern": {
    "query": "MATCH (n) RETURN DISTINCT id(n)",
    "type": "Cypher"
  },
  "outputs": {
    "print-output": {
      "type": "PrintToStandardOut"
    }
  }
}'

You will see new node events similar to the one below appear in the same console window where you launched Quine Enterprise immediately after running the curl command. These events contain the id of each new node created in the graph.

2022-08-23 14:06:55,174 Standing query `print-output` match: {"meta":{"isPositiveMatch":true,"resultId":"dab367a3-b272-7dba-c12e-a65bc9f5e0b8"},"data":{"id(n)":"911d88e0-413a-42bd-a0f8-dd15bbf6aff6"}}

Ending the Stream

This quick-start is a foundation that you can build on top of to ingest and interpret your own streams of data. But for now, we can pause the ingest stream and shutdown Quine Enterprise before moving on.

curl -X "PUT" "http://127.0.0.1:8080/api/v1/ingest/wikipedia-page-create/pause"

curl will return a confirmation that the ingest stream is paused and metrics about what had been ingested to that point.

{
  "name": "wikipedia-page-create",
  "status": "Paused",
  "settings": {
    "format": {
      "query": "CREATE ($that)",
      "parameter": "that",
      "type": "CypherJson"
    },
    "url": "https://stream.wikimedia.org/v2/stream/page-create",
    "parallelism": 16,
    "type": "ServerSentEventsIngest"
  },
  "stats": {
    "ingestedCount": 3096,
    "rates": {
      "count": 3096,
      "oneMinute": 1.1004373606561983,
      "fiveMinute": 1.1045410320126854,
      "fifteenMinute": 1.123947504968256,
      "overall": 1.12992666124191
    },
    "byteRates": {
      "count": 4471549,
      "oneMinute": 1529.8568026569903,
      "fiveMinute": 1553.9585381108302,
      "fifteenMinute": 1614.01351325884,
      "overall": 1631.9520432126692
    },
    "startTime": "2022-08-23T18:30:58.571823Z",
    "totalRuntime": 2739271
  }
}

You can stop Quine Enterprise by either typing CTRL-c into the terminal window or perform a graceful shut down by issuing a POST to the admin/shutdown endpoint.

curl -X "POST" "http://127.0.0.1:8080/api/v1/admin/shutdown"

Next Steps

Learn how Quine Enterprise uses recipes to store a graph configuration and UI enhancements in the recipes getting started guide.
